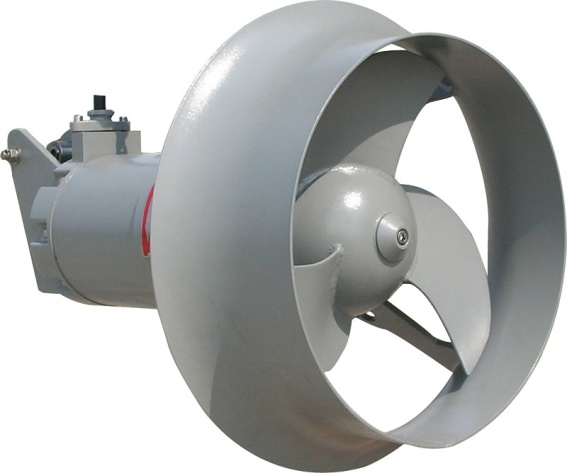

QJBE Submersible Mixer with High Efficiency
QJBE submersible mixer and agitators have the best efficiency.
Submersible mixer can meet the technological requirement for homogeneity and fluidity of solid-liquid two-phase flow and solid-liquid-gas three phase flow in biochemical course of the water treatment process. It is composed of the submersible motor, impeller, and installation system etc.
QJBE submersible mixer and agitators has the characteristic of compact structure, easy to install, simple to operate, easy to maintain, small power of the motor and low noises level.
The agitators can be operated normally and continuously at the following conditions:
1.Altitude of up to 1000m;
2.Max medium temperature of up to 40º C;
3.Medium pH of between 5 and 9;
4.Liquid density of up to 1150kg/m3
5.Submersion depth of up to 20m;
6. Viscosity of up to 50cp in tank of volume between 1000 and 3000m3, viscosity of up to 1000cp in tank of volume between 500 and 700m3.
Concact Now
Concact Now
Promise
Description
Reviews
Descriptions
Submersible mixer can meet the technological requirement for homogeneity and fluidity of solid-liquid two-phase flow and solid-liquid-gas three phase flow in biochemical course of the water treatment process. It is composed of the submersible motor, impeller, and installation system etc.The submersible mixer is in direct connection structure. Comparing with the traditional high-power electric motor that retards speed.
QJB submersible mixer and agitators are able to be located at any position. They have the best efficiency. They are widely used in waste water treatment plants and industry process to agitate the suspended substances contained water, watery slurry, icy water, liquid from industry process, roast liquid, etc. They can be also used to create water flow in the tank, to open up water channel, to oxygenate fishing pound, to prevent pound form icing.
Characteristics
QJBE submersible mixer and agitators are able to be located at any position. They have the best efficiency. They are widely used in waste water treatment plants and industry process to agitate the suspended substances contained water, watery slurry, icy water, liquid from industry process, roast liquid, etc. They can be also used to create water flow in the tank, to open up water channel, to oxygenate fishing pound, to prevent pound form icing.
Advantages of QJBE Submersible mixer
1. Strong power of high-turn motor: intelligent processing and casting, smooth operation, moisture-proof and rust-proof surface treatment.
2, copper wire motor super power: the use of copper wire high temperature resistance, longer service life, stable and reliable.
3, high precision rotor no noise: stable and reliable, sufficient power, long service life, no noise, suitable for high speed operation.
4, Propeller type stainless steel 304 impeller: 304 stainless steel material, and thickened sharp impeller, which has been optimized design, the overall efficiency is high.At the same time, the swept-back blade also has a self-cleaning function, which can effectively prevent sediment blockage.
Scope of Application
The submersible mixers are mainly used for mixing, agitating and making ring flows in the process of municipal and industrial sewage treatment and can also be used for equipment maintenance of the landscape water circulation through agitation, they can achieve the function of creating water flow, improving water quality, increasing oxygen content in the water and effectively preventing the sedimentation of the suspended substances.
Conditions of Application
In order to ensure the normal operation of the submersible mixer, please make correct selection of the operating environment and the operating modes.
The highest temperature of the medium shall not exceed 40,
The scope of pH value of the medium: 5~9,
The density of the medium shall not exceed 1150Kg/m³
The depth of submersion shall not exceed 20m.
▲Special Warning:
The submersible mixer must completely submerse in the water and cannot
operate in the inflammable,
explosive, highly corrosive and high-temperature environment. In line with the requirement of the
special environment, our company can provide special design for the users
TYPICAL USAGE
The agitator power is decided on the volume, density and viscosity of the agitated liquid and agitating depth. Several agitator are used in large tank.
IDENTIFICATION CODES
Parameters of QJBE submersible agitator
