FRP Moulded Gratings
China Fiberglass grating manufacturer
Fiberglass grating in Square mesh is the most popular pattern of molded frp grating,it's widely used as flooring,walkways,platforms in many industries over a wide span of aggressive and corrosive environments.
Features
- Excellent Corrosion and Chemical Resistance
- Great tensile strength and impact resistance
- Slip resistance
- Light weight
- Fire Retardant
- Electric insulation
- Esay installation and facrication
- Anti-aging and Long life service
- Beautiful and colorful for option
- Low maintenance
Concact Now
Concact Now
Promise
Description
Specification
How to Order
Reviews
MaxGrate offers a choice of five resin systems for fiberglass moulded grating to accommodate different requirements of each custom application, all MaxGrate resin systems have a class 1 flame spread rating of 25 or less per ASTM E-84.

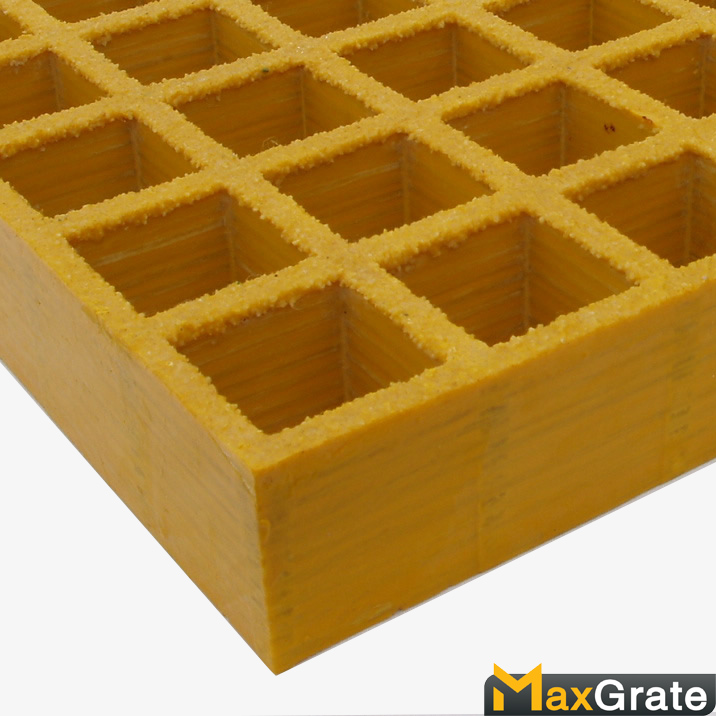

MaxGrate FRP grating Square mesh sizes:
S1-38x38mm(1.5’’x1.5’’)
S2-40x40mm
S3-50x50mm(2”x2”)
Material used:
-Continuous fibreglass E-glass direct roving.
-Five resin systems for option to meet your applications.
-AL(OH)3 powder as the stuffing material to flame retardant
Standard FRP Grating Surface
When the panel naturally cured, the surface shall have a concave surface for slip resistance. A standard grit surface is made through a secondary operation by sanding slica sand on the top surface of grating to provide long lasting slip resistant surface.
C-Concave Surface

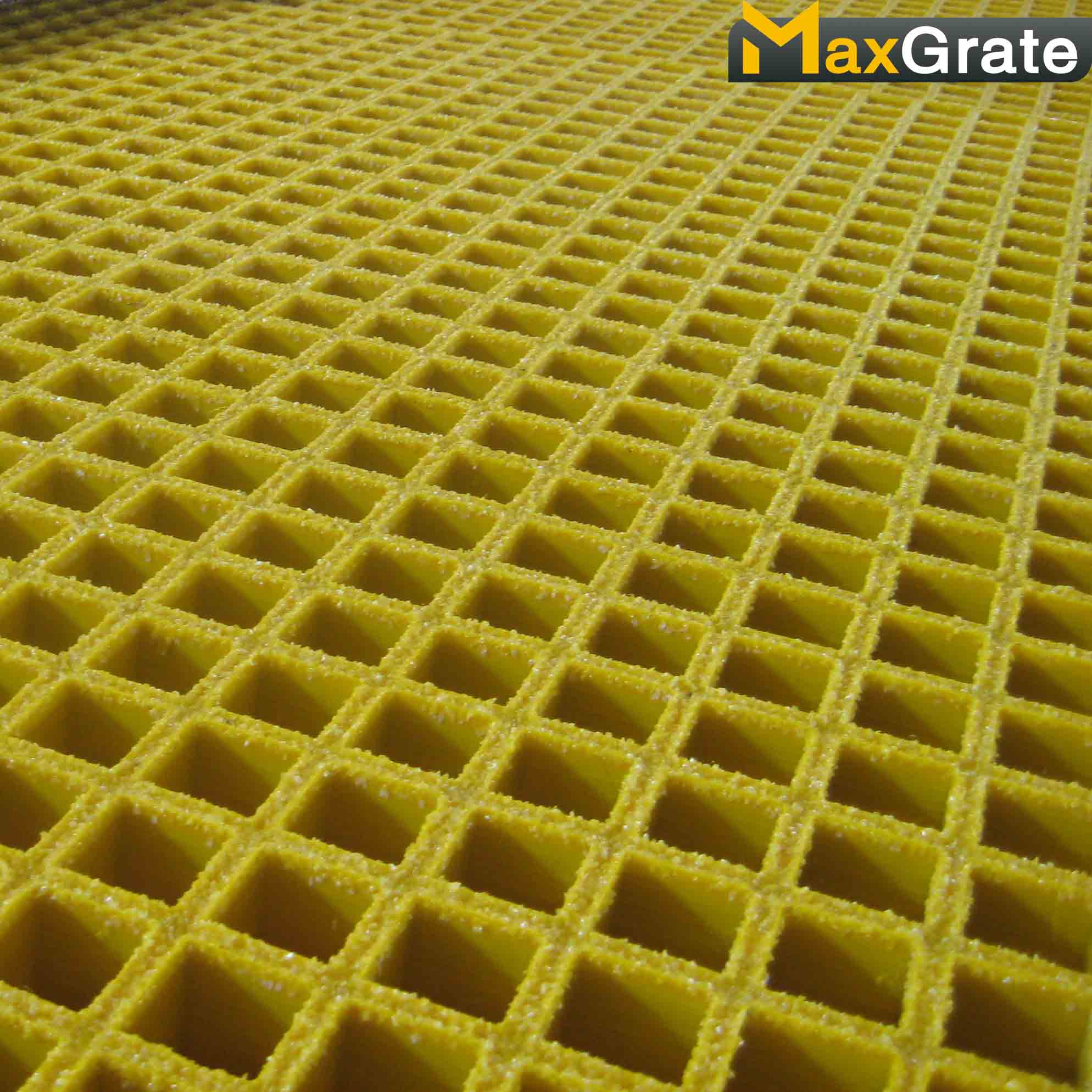

G-Gritted Surface
S-Smooth Surface
FRP gratings naturally have concave
surfaces, so as to slip resistance.
FRP gratings with sanding surface
have super anti-slip characteristic .
FRP grating with polished smooth surface have beautiful appearance
FRP Covered Grating Surface
MaxGrate Covered Grating is a one-piece molded grating, combing the solid surface of plate on the top of molded grating. Covered grating is ideal for applications where require no open mesh of the grating. Whether over a food process or for reducing fumes and odors, covered grating meets the needs for solid surface decking that is both corrosion resistant and slip resistant. It is also used in areas where cart wheels or shoe heels might have difficulty if over standard open mesh grating.
Covered grating is available in a variety of thickness. Standard plate thickness is 3mm, other thickness is available as per customer's special request.

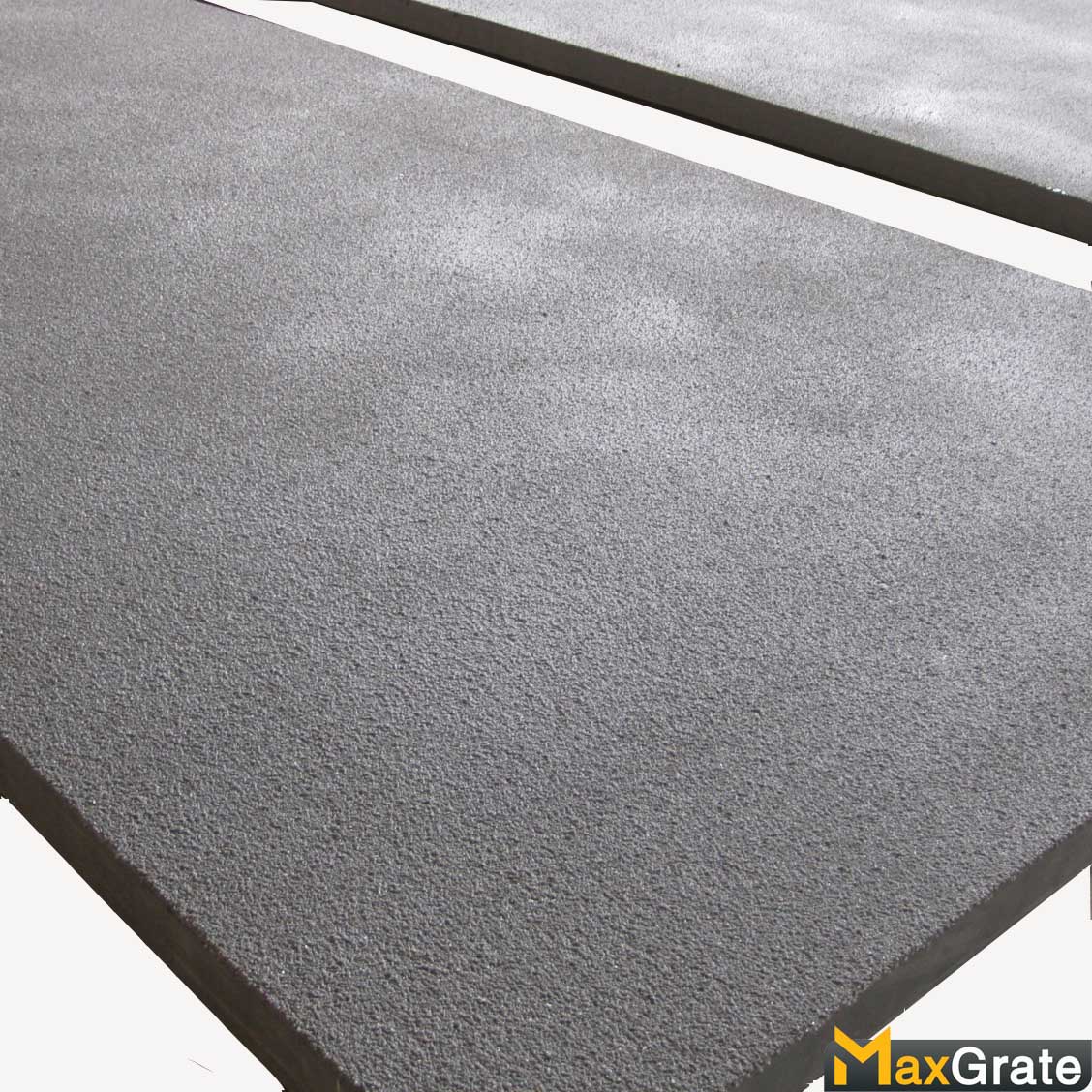

GC-Gritted Covered
DC-Decorative Covered
SC-Smooth Coverd
The gritted top covered surface
can not only anti skid but also
enhance the strength.
The decorative pattern surface makes
the FRP gratings anti-skid and more
beautiful.
The smooth solid top grating is flat and non slid resistance .

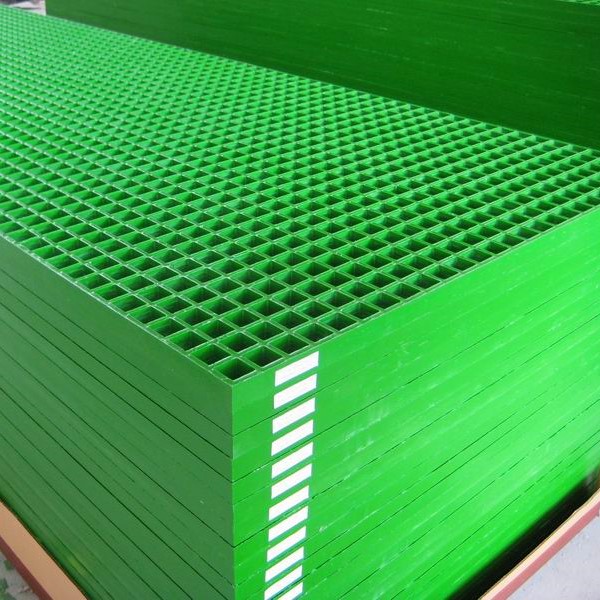

Rich Color for Option
MaxGrate offers wide color selections for FRP molded grating as well as covered grating. The followings are some of the most popular colors that we may have stock and keeping continuously production. We can closely match any color in the Ral Color Chart Page or provided color chips.
Square mesh
S1
S2
S3
Specifications In Imperial Units
Specifications In Metric Units
Catalogue Number
For example:
MS1T38P2OGGN1: Molded frp grating,Square mesh 38x38mm(1.5''x1.5''),thickness 38mm,panel size 1220x2440mm(4'x8'),Ortho resin,Gritted surface,Color Green RAL6029.
Others*: Special mesh size, thickness maybe available upon request, any panel size within the standard size are available, other colors as per RAL no. chart are avaiiable. please contact one of our sale managers before ordering.
