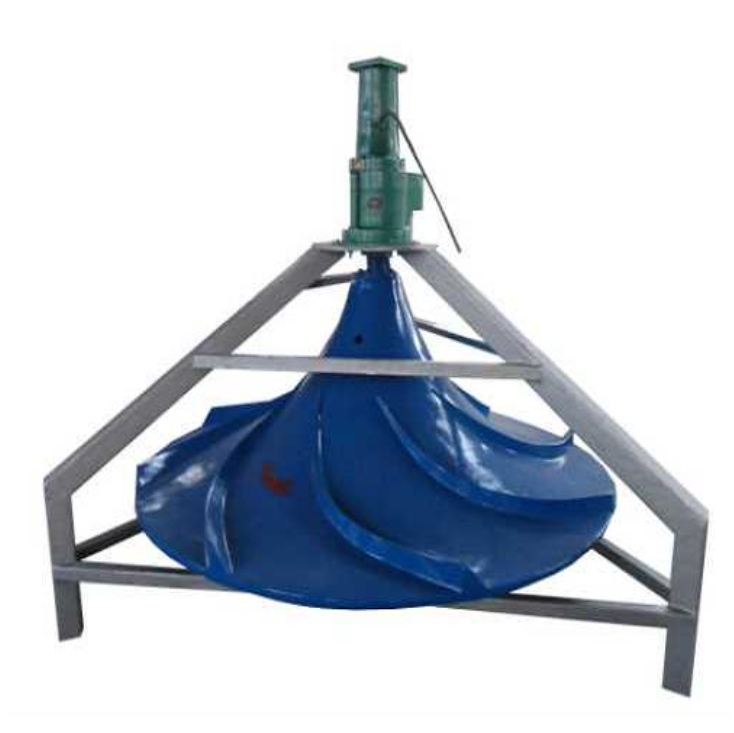

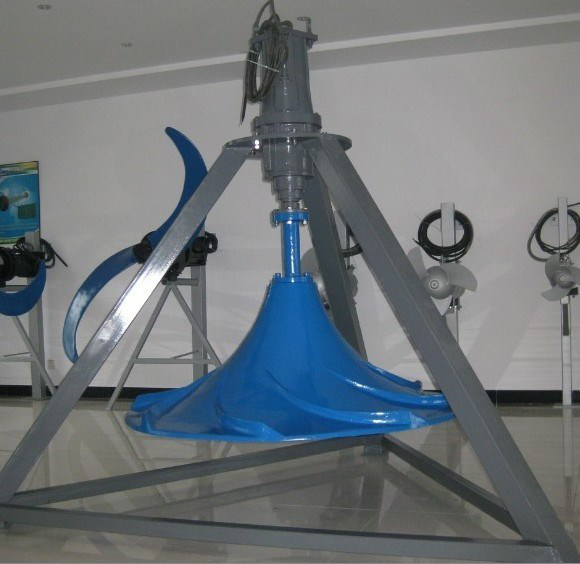

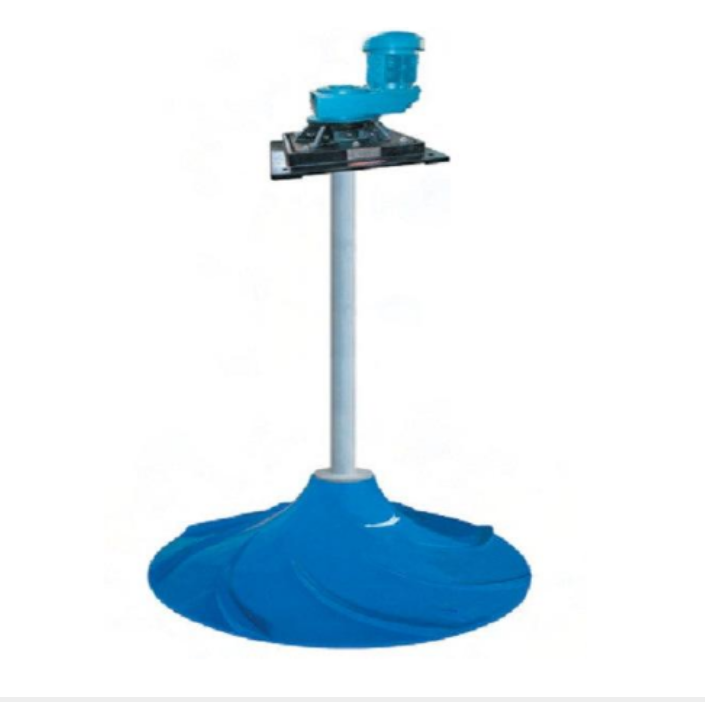

GSJ/QSJ Hyperboloid mixer
Hyperboloid agitator is also called aeration agitator with double impeller.
The upper surface of the hyperboloid impeller body is a hyperboloid structure formed by the hyperbolic busbar rotating around the axis of the impeller body. The unique impeller structure design combines fluid characteristics with mechanical movement to the greatest extent.
Features of hyperboloid mixer
1, mixing and aeration in one device, can also be a single mixing.
2, reasonable design, power consumption.
3, can be used in large, medium and small sewage treatment, less investment.
4, good treatment effect, long service life.
5, made of PE or glass reinforced plastic, steel materials, etc., to strengthen the anti-corrosion performance of the equipment.
6. Simple structure and convenient management.
Concact Now
Concact Now
Promise
Specification
Reviews
Description
GSJ/QSJ hyperboloid mixer is able to be located at any position. They have the best efficiency. The hyperboloid mixer is widely used in environmental protection, chemical industry, energy, light industry and other industries where the liquid needs to be double-phase solid-liquid or three-phase solid-liquid gas mixing occasions, especially suitable for the sewage treatment process in the coagulation tank, regulating tank, anaerobic tank, nitrification tank and denitrification tank.
FRP hyperboloid mixer has the characteristic of compact structure, easy to install, simple to operate, easy to maintain, small power of the motor and low noises level.
FRP IMPELLER
GSJ/QSJ unique dual impeller mixer surface structure design, to maximize the fluid properties and mechanical movement combines. Hyperboloid impeller surface flow line completely tangent portfolio, the entire surface of the center of rotation aroumd the drive shaft made of double-curved surface;order to meet the water flow, the design center of water from the impeller, reducing water turbulence in this regard, On the other hand ensure that the liquid pressure on the impeller surface uniformity, favorable water flows, reducing the vibration machine in operation to ensure the machine in motion state of balance. Involute arc in both double cloth with guide vanesm, the pressure to add weight with liquid water potential energy obtained with the impeller rotating centrifugal force generated by the formation of kinetic energy when the liquid under the conditions in the acceleration of gravity along the circumferential direction as the impeller tangential movement reflection on the pool wall under the action of the formation of circulating water flow from the bottom up.
TYPICAL USAGE
The mixer power is decided on the volume, density and viscosity of the agitated liquid and agitating depth. Several mixer are used in large tank.
EQUIPMENT SELECTION
To ensure the best results, the basic conditions required for selection are as follows:
1.Pool shape (size and shape)
2.Mixing purpose (standard or parameters required)
3.The nature and sewage sludge (floc,sand, fier, etc) concentration
4.Pool obstacles(columns, piples, aeration systems, etc)
5.Medium features:including viscosity, density and solid content
Specifications
Fiuid figure
Installation
Notes for installation of hyperboloid mixer
1. The bridge should be corrected horizontally, the half bridge column should be corrected straight, the anchor bolts and the connecting parts should be strong and reliable.
2. Put the shock seat flat on the bridge to specify the orientation, and proofread the horizontal thick bridge to connect and fix.
3. The reducer motor device is on the shock absorber base, and is connected and fixed.
4. Connect the impeller and the flange of mixing shaft with bolts and tighten them.
5. Put the impeller and mixing shaft into the pool, and the mixing shaft is connected with the output shaft of the reducer and fastened.
